Gearbox Steel Unistrut C Channel Roll Forming Machine Solar Rack Making

Brand Name : CHBEST

Model Number : XY41x41

Certification : CE/BV/SGS

Place of Origin : China Hebei

MOQ : 1 set

Supply Ability : 10sets/month

Delivery Time : 50-60 days

Packaging Details : plastic film for naked machine

Product name : Steel Unistruct C Channel Solar Rack Making Roll Forming Machine

Machine speed : 8-10m/min

Driven system : Chain or gear box

Control system : PLC

Cutting type : Hydraulic

Warranty : 2 years

Life time : more than 10 years

Contact Now

Steel Unistruct C Channel Solar Rack Making Roll Forming Machine

Working flow


Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table

Machine Component


Hydraulic De-coiler-----------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
Punching machine-------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Hydraulic punching device---------------------1set
Production support table-----------------------1set

Machine Specifications

Part details Item Name Specification
Material Raw material Galvanized steel
Thickness 1.5-3 mm
Puncher Weight capacity 40 T
Machine Roller station 18
Shaft diameter 65 mm
Shaft material 45# steel with 0.05mm chrome
Roller material hardness 30-40 HRC 45# steel with 0.05mm chrome
Machine size About 8.5×0.8×1 m
Machine weight About 4.5 ton
Machine color As customer' request
Working speed 10-20 m/min
Cutter Hardness 50-65 HRC
Cutting tolerance ± 1 mm
Material Cr 12
Operate Hydraulic cutting
Power Driving way Chain 1 inch
Main power 7.5 kw
Pump power 4 kw
Voltage

380v/50HZ,3P or customize

as customer' request
Control system PLC brand Delta made in Twaiwan
Screen Touchable screen
Language Chinese and English or add language as customer need
Decoiler Operation Manual
Weight capicatity 3 ton
Price Free as gift
Receiving table Operation Manual
Length 3 m


Installation and training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting,we will send you user manual and CD to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.

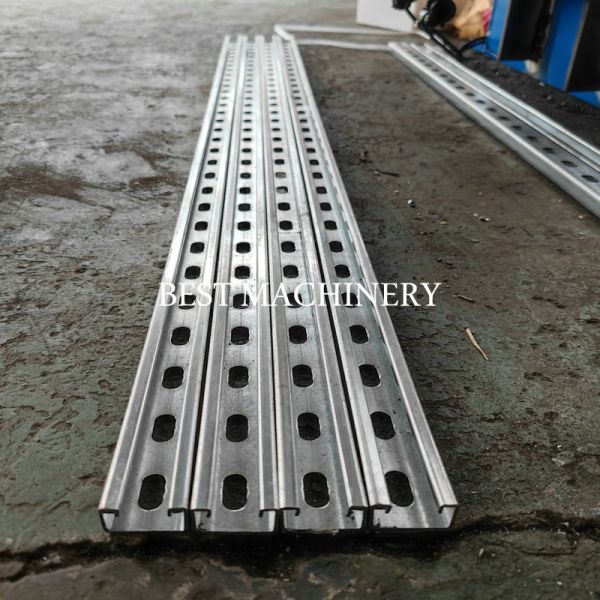

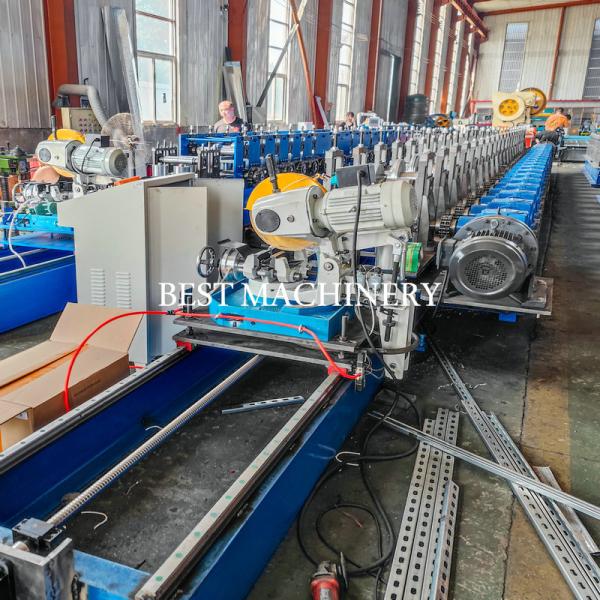

Machine Photos
Gearbox Steel Unistrut C Channel Roll Forming Machine Solar Rack Making

Gearbox Steel Unistrut C Channel Roll Forming Machine Solar Rack Making
